Installing Intel HD Graphics Driver for WinXP with SCCM 2007 SP2 fails with error code 14

11:26 am in ConfigMgr, ConfigMgr 2007, ConfigMgr 2007 R2, ConfigMgr SP2, ConfigMgr2007 R3, Intel, Operating System Deployment, OSD, SCCM 2007, SCCM 2007 R2, SCCM 2007 R3, SCCM 2007 SP2 by Kenny Buntinx [MVP]

If you need to install the latest release of the Intel HD Graphics Driver via a SD package or OSD task sequence with SCCM 2007 SP2.

I downloaded the driver from the Intel website and built a package for a silent install (just adding -s to setup.exe) .

If I run it manually, it works fine. If I have it run by a SCCM SD program or OSD task Sequence , it runs fine, but the SCCM program log reports error 14.

The IntelGFX log shows no error, the drivers installs fine… why does SCCM say it didn’t ? SCCM reports that error code (14) is related to the product.



Workaround :

Make a .cmd that installs it, and add echo finish at the end so that the .cmd file is sending return code 0(Zero) to SCCM.



Hope it Helps ,

Kenny Buntnx

Step by Step guide for provisioning Intel VPro clients in SCCM 2007 SP2 Part 4

1:05 pm in AMT, ConfigMgr, ConfigMgr 2007, ConfigMgr 2007 R2, ConfigMgr SP2, ConfigMgr2007 R3, Installation, Intel, OOB, out of band management, sccm, SCCM 2007, SCCM 2007 R2, SCCM 2007 R3, SCCM 2007 SP2, sccm2007, Vpro by Kenny Buntinx [MVP]

This is my last post about the step by step series about Step by Step guide for provisioning Intel VPro clients in SCCM 2007 SP2.

In my previous post I have talked about importing the 3rd Party Remote Configuration Certificate on the OOB Service Point (In this example we will use a certificate from GoDaddy ) to provision Intel vPro technology based systems in SCCM at http://scug.be/blogs/sccm/archive/2010/05/06/step-by-step-guide-for-provisioning-intel-vpro-clients-in-sccm-2007-sp2-part-3.aspx

In my previous posts I talked about what is OOB, OOB requirements and little bit about the necessary certificates. In this post I will talk about internal PKI infrastructure and how to configure OOB management point within SCCM. ConfigMgr 2007 SP2 uses four types of certificates for Out Of Band Management. These four different certificates are:

  • AMT Self Signed certificate – IntelAMT will generate a self-signed certificate during the PKI provisioning process to secure the connection with the ConfigMgr 2007 Server.
  • AMT provisioning certificate – This certificate is used by ConfigMgr 2007 to provision Intel AMT devices. The most simple and automated method for provisioning is the process of purchasing this certificate from a third-party provider (VeriSign, GoDaddy, Comodo, or Starfield). This certificate will need to be installed on each OOB Service Point in the environment.
  • Web server certificate -This certificate is generated by an internal Enterprise Certificate Authority during the provisioning process and installed on each AMT device within the firmware. This will allow for a TLS management session between the ConfigMgr 2007 OOB Management console and the AMT firmware.
  • 802.1x RADIUS Certificate – Optional certificate that allows the Intel AMT client to securely authenticate to an 802.1x network without the operating system being present.



In our case , you will need an internal certificate Authority and create two certificates :

AMT provisioning certificate – In this case the Godaddy cert and Request, install and prepare the AMT remote configuration certificate ( Already done in the previous blog post)

Web server certificate – this certificate is requested by the primary site server on behalf of AMT-based computers and then installed in the AMT firmware in the computers



To Prepare Web server certificate – see the steps below :



1. Open your Certificate Authority issuing PKI Server –> Click Start> All Programs > Administrator Tools > Certification Authority

2. Right Click on Certificate Templates > Manage

3. In the Certificate Templates Console Window, right click on Web Server and select Duplicate Template

4. In the Duplicate Template Window, select the radio button for Windows 2003 Server, Enterprise Edition and Click OK

DDT.d96awjjfrximbk2m2qsliu5ye

DDT.a3k4l9_t2azme_c6ef0l46s



5. In the Properties of New Template Window and enter ConfigMgr AMT Web Server Certificate

6. Check the Box to Publish certificate in Active Directory

7. Proceed to next step to set the security rights on this template.

DDT.1267ggmdv9kybtbns5en0x9kb

DDT.prcs5_hsztigngwakhvneme6f

8. Select the Security Tab and click Add

9. Select the ConfigMgr site server 2007 primary site server computer group and Click OK

10. With the ConfigMgr Primary Site Servers group highlighted, check Read and Enroll , Click OK

11. Close the Certificate Templates Console

DDT.ys6tg1xa66xrq0bybc63m1l2f

DDT.xifb6o_8tyh4zjfsw3k2achah



12. In the Certification Authority Window, right-click on Certificate Templates > New > Certificate Template to Issue

13. In the Enable Certificate Templates Window, select ConfigMgr AMT Web Server Certificate (this template was created in the previous step)

14. Click OK

DDT.sfg1r_sf0gnzq2opcslrkw5y

DDT.ardw0uy_44ezggibpo1dmc4lb



15. In the Certification Authority Window, you will now see ConfigMgr AMT Web Server Certificate listed in the right hand Window and ready for use by the Out of Band Service Point

Note: This Web Server Template will be used by ConfigMgr 2007 SP2 to generate a unique certificate for each Intel AMT system during the provisioning process,and used for TLS session during management of the Intel AMT client .



How to Configure OOB service in SCCM



After you have your exported *.pfx certificate we will import this into the SCCM out of band management properties box. Now you have configured all certificates, permissions and have a certificate private key we are going to configure the OOB management point.

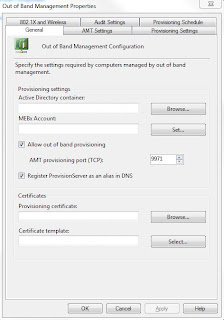

1. Open SCCM console -> Site Settings -> Component Configuration -> Out Of Band Service Point





2. Create extra OU in Active Directory where SCCM creates AMT computer objects. Make sure the Configmgr Primary Site Server has permissions on that container to create those objects!

2. Configure MEBx password that SCCM uses to connect AMT-based computers. By default this password is admin but you can change this later on.

3. You could select “Allow out of band provisioning” and “Register ProvisionServer as an alias in DNS” but it wouldn’t be necessary if you only are going to in-band provision ( Thru the SCCM Client)

4. Configure Provisioning certificate. From here you now have to import that *.PFX file and enter your previous  configured password.

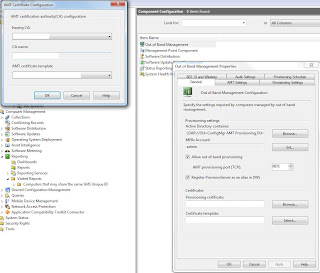

5. Configure your web certificate template. From here you have to select your internal PKI CA and select your ConfigMgr AMT Web Server Certificate.

You can configure all the other tabs at your own flavor .

You will find a good document from Intel with all the steps at www.intel.com/en_US/Assets/PDF/…/cg_MicrosoftConfigMgr_vPro.pdf

Hope it Helps ,



Kenny Buntinx

Intel AMT Vpro KVM Configmgr plugin doesn’t work out of the box

12:49 pm in AMT, ConfigMgr, ConfigMgr 2007, ConfigMgr 2007 R2, ConfigMgr SP2, ConfigMgr2007 R3, Intel, out of band management, sccm, sccm2007, Vpro by Kenny Buntinx [MVP]

In my previous blog post “SCCM 2007 : Intel AMT–VPRO KVM add-on for SCCM 2007” , I have written that Intel had release a KVM (version 6 or higher) plugin for Configmgr 2007 .

I was experiencing issues with the Intel Vpro KVM Configmgr plugin. It seems that the extensions are not installed correctly by Intel. After installing the plugin , I opened up the console and it didn’t show me any Intel Vpro options as shown in the picture below .




If you launch the KVM tool manually , it works perfectly. However in the console I don’t see any right click action as shown in the above screenshot.

When I looked a little closer , I saw that the default SCCM admin console is installed in the following default path “C:\Program files\Microsoft Configuration Manager Console\” while Intel’s setup seems to create the following path “C:\Program files\Microsoft Configuration Manager\”(missing the console part)  that contains the extensions XML file called “IntelVproExt.XML”.



clip_image001

Also if you didn’t stick to the default install paths , you will have the same issues .



Solution:

Copy the folder structure from “C:\Program files\Microsoft Configuration Manager\” to “C:\Program files\Microsoft Configuration Manager Console\” . Now you will have the option in the console .



Hope it helps

Kenny Buntinx
